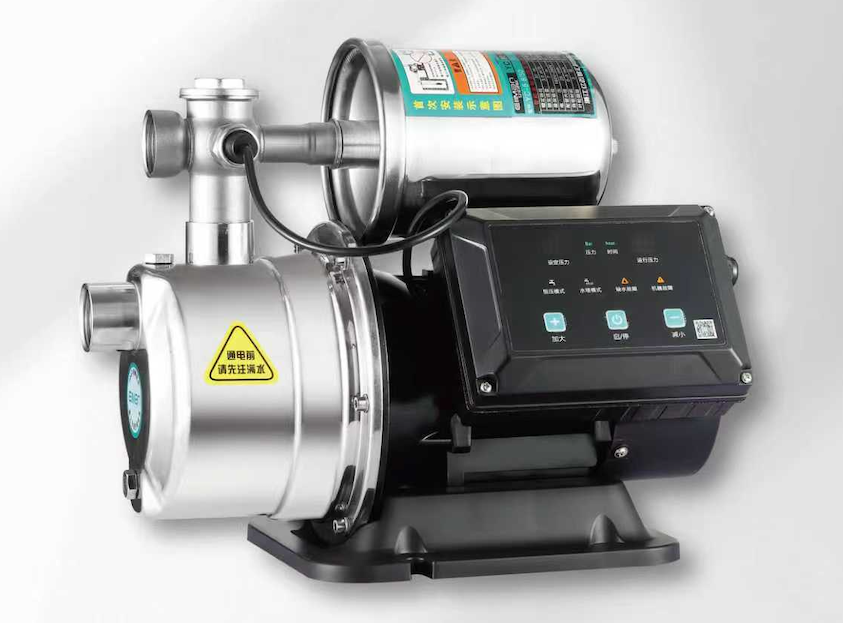

EIMAN Permanent Magnet Variable Frequency Multistage Self-Priming Pump

Technical Specifications

Parameter	Value
Rated Power	900 W
Input Voltage	180–260 V
Pump Inlet Diameter	DN25
Rated Flow	3.5 m³/h
Maximum Flow	6 m³/h
Self-Priming Height	5 m
Rated Head	35 m
Maximum Head	60 m
Applicable Water Temperature	≤ 60°C
Speed Range	1000–4800 r/min
Net Weight	7.6 kg
Package Dimensions	375 × 270 × 345 mm

---

Application Scenarios

• Household water boosting, water tower/well water supply, cold water circulation / air energy circulation.
• 1–3 floors: supports 6–7 faucets simultaneously
• 4–6 floors: supports 5–6 faucets simultaneously
• 7–9 floors: supports 4–5 faucets simultaneously
• 10–12 floors: supports 3–4 faucets simultaneously

---

Features

Variable Frequency Energy Saving

4800-rpm variable-speed motor automatically adjusts power according to water usage.
Energy consumption is half of traditional constant-speed pumps.

Constant Pressure and Quiet Operation

AI algorithm monitors pipeline pressure.
Constant pressure output ensures consistent performance.
Multistage impeller structure reduces noise.

High Efficiency & Environmental Protection

Flow components are made of high polymer materials, non-toxic and odorless.
Three-blade impeller design improves efficiency.

---

Comprehensive Protection

• No-water protection / Dry-run protection
• Overcurrent protection
• Anti-leakage protection
• Anti-freeze protection (automatically activates if temperature < 3°C when power is connected)

---

Self-Priming Design

Multistage impeller without air chamber walls allows efficient self-priming,
eliminating traditional startup difficulties.

---

Durable and Reliable

NSK high-speed bearing, silicon carbide & graphite mechanical seal,
stainless steel pressure housing for extended lifespan.

---

Notes

1. Applicable water temperature: ≤ 60°C
2. During exhibition or first-time use, please add water for priming.
