INTEGRATED ENGINEERING
Pressure that responds to demand
A variable-frequency controller adjusts motor speed as taps open and close. This can provide steadier pressure and reduce full-speed cycling; the result depends on correct sizing and installation.

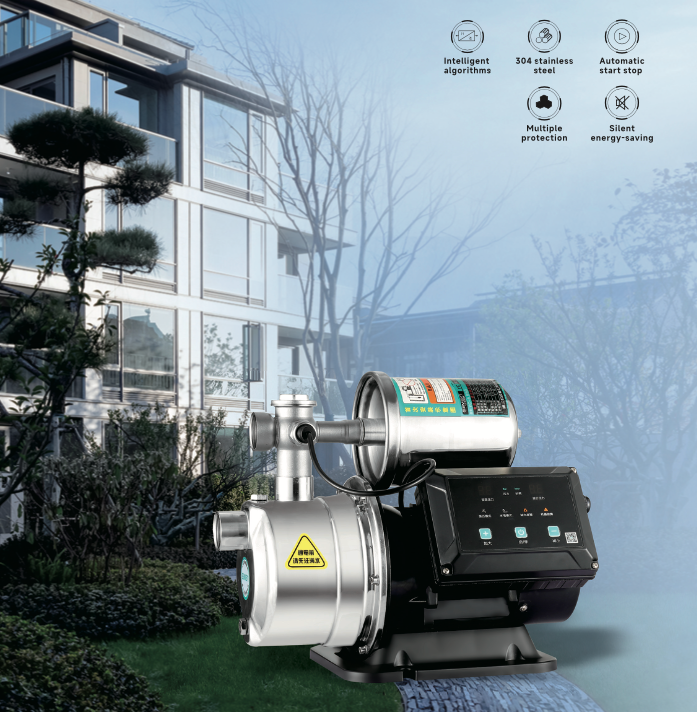

ZB
ZB self-priming boosters. Check the water source, suction lift, pipework and how many taps run together.

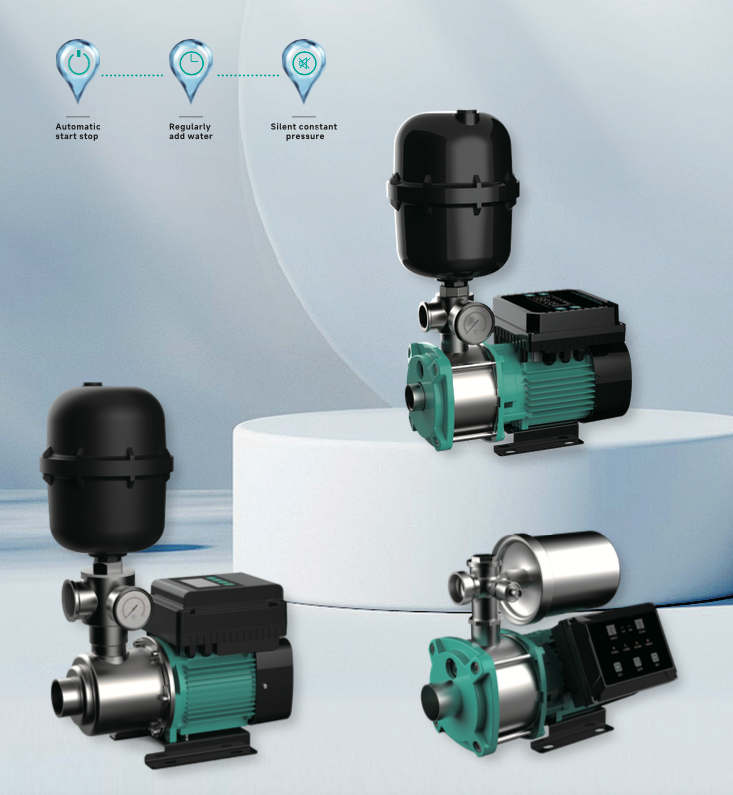

YC-S
YC-S multistage pumps. Size for peak demand, building height and hot/cold water requirements.

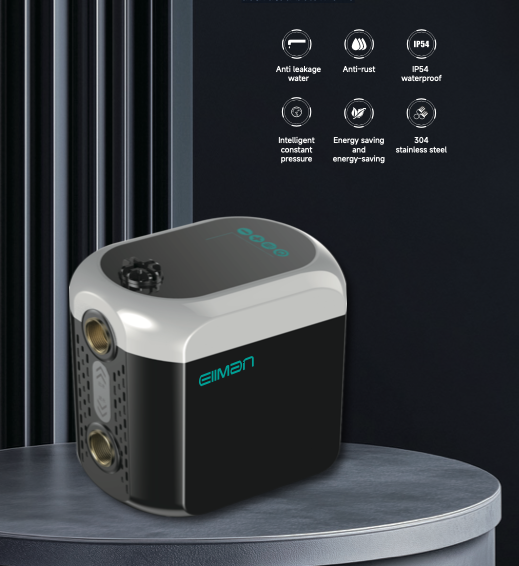

Home Use Booster Pump

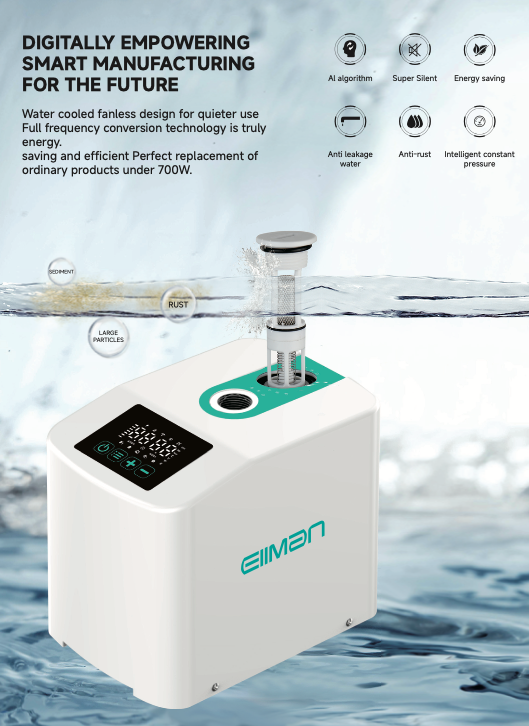

Water cooled fanless design for quieter use Full frequency conversion technology is truly energy saving and efficient
Perfect replacement of traditional booster pump under 700W.
PERMANENT MAGNET VARIABLE FREQUENCY CONSTANT PRESSURESELF SUCTION PUMP
- Self-Priming
- Rapid Water Intake
- Silent Operation
COLD AND HOT UNIVERSAL ANTIFREEZE FUNCTION
Strong compatibility for both cold and hot
(not exceeding 100 °C) water
Automatic anti freezing function can be
activated below 3 °C
PERMANENT MAGNET VARIABLE FREQUENCY CONSTANT PRESSURE
WATER SUPPLY SYSTEM
Large-Scale Housing Unit, Rental Property
Dedicated Water Supply System
EXCLUSIVE FOR HOTELS/HOME STAYS/VILLAS
Cold and hot water universal to meet more needs, with optional 485 communication function.
Model | Power (w) | Rated Flow (m³/h) | Rated Head (m) | Max Flow (m³/h) | Max Head (m) | Max Speed (r/min) | Inlet/Outlet (mm) |
| YC-B-400 | 400 | 2.5 | 22 | 4.8 | 40 | 4200 | 25 |
| YC-B-700 | 700 | 3.5 | 30 | 5.8 | 50 | 4600 | 25 |
| YC-B-900 | 900 | 4 | 30 | 6.5 | 60 | 4300 | 25 |
| YC-F-400 | 400 | 2.5 | 22 | 4.8 | 40 | 4200 | 25 |
| YC-F-700 | 700 | 3.5 | 30 | 5.8 | 50 | 4600 | 25 |
| YC-F-900 | 900 | 4 | 30 | 6.5 | 60 | 4300 | 25 |
| YC-FK-1.1 | 1100 | 6 | 30 | 16 | 50 | 4000 | 40 |
| YC-FK-1.5 | 1500 | 8 | 30 | 18 | 55 | 4200 | 40 |
| YC-FK-2.2 | 2200 | 12 | 30 | 20 | 60 | 4200 | 40 |
| YC-SK-1.1 | 1100 | 6 | 30 | 16 | 50 | 4000 | 40 |
| YC-SK-1.5 | 1500 | 8 | 30 | 18 | 55 | 4200 | 40 |
| YC-SK-2.2 | 2200 | 12 | 30 | 20 | 60 | 4200 | 40 |
Water-cooled motor pump
The water-cooled shielded motor eliminates the noise caused by traditional water pump fan cooling. Water can quickly cool down the water supply motor, protect the water pump, and isolate noise, resulting in a longer service life of the motor.

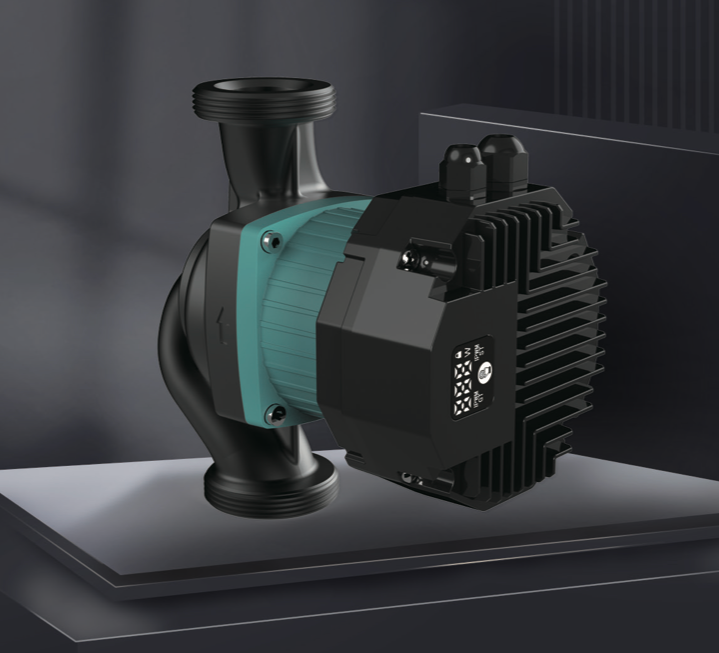

HVAC Specialized Circulation Pump
Anti-Condensate permanent Magnet Frequency conversion Adaptive

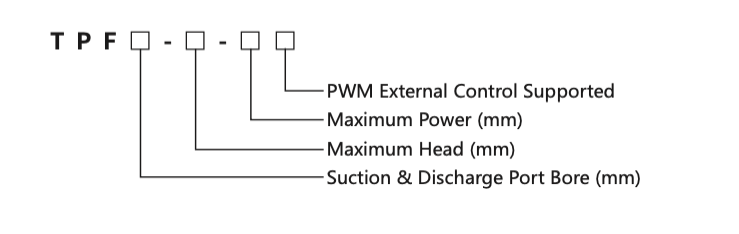

Model Decoder
- TPF: Ferrite Magnetic Ring
- TPN: Neodymium-Iron-Boron (NdFeB) Magnetic Ring
Model | Power (w) | Rated Flow (m³/h) | Rated Head (m) | Max Flow (m³/h) | Max Head (m) | Max Speed (r/min) | Inlet/Outlet (mm) |
| TPF25-14-180E | 180 | 2.5 | 10 | 7 | 14 | 4300 | 25 |
| TPF25-16-220E | 220 | 3 | 11 | 7.5 | 16 | 4600 | 25 |
| TPF32-10-180E | 180 | 3.5 | 8 | 9.5 | 10 | 4500 | 25 |
| TPF32-12-220E | 220 | 4 | 9 | 10 | 12 | 4800 | 25 |
| TPN32-16-280E | 280 | 5 | 10 | 11 | 16 | 5600 | 25 |
| TPN32-18-360E | 360 | 6 | 11 | 12 | 18 | 6000 | 25 |
Choose a pump for your water system
Prepare your water source, required flow rate, vertical lift, pipe length and diameter, desired outlet pressure and power supply. For a borehole, also provide the borehole diameter and pumping water level. Match the pump model to its performance curve at your actual operating conditions.
Can a pump deliver maximum flow and maximum head together?
No. These values describe different points on the pump performance curve. Check the flow available at the head your system needs, including vertical lift, outlet pressure and pipe losses, before selecting a model.
