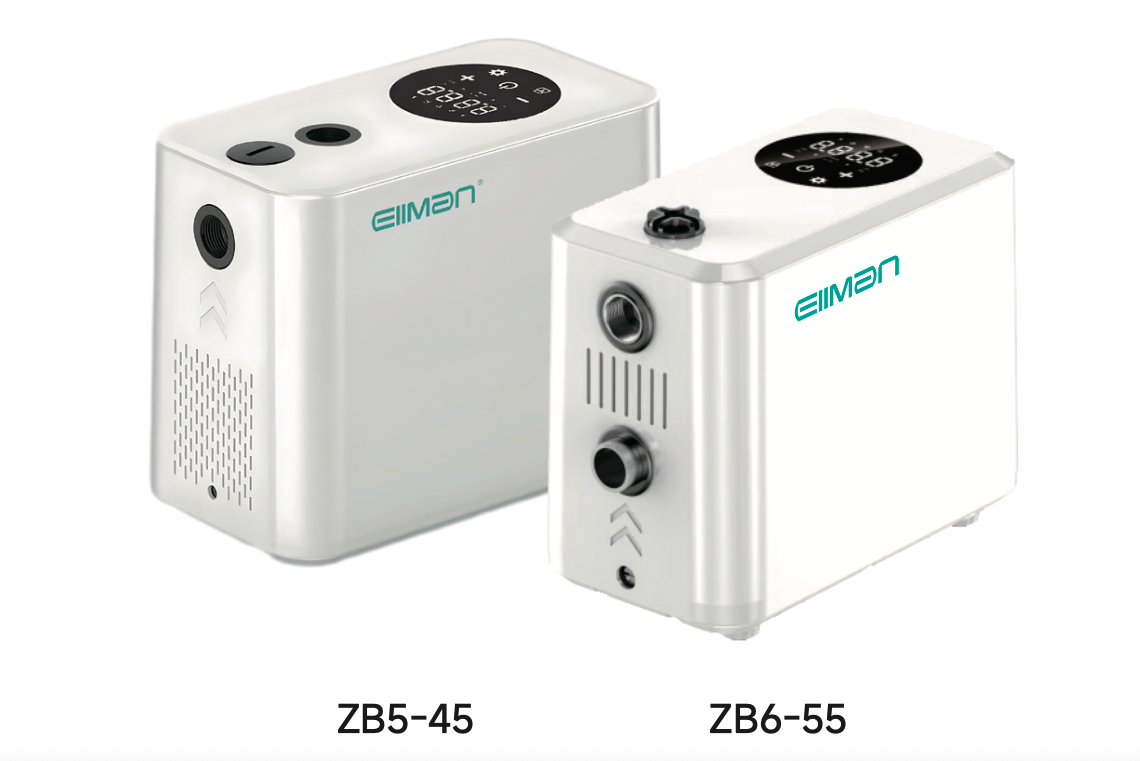

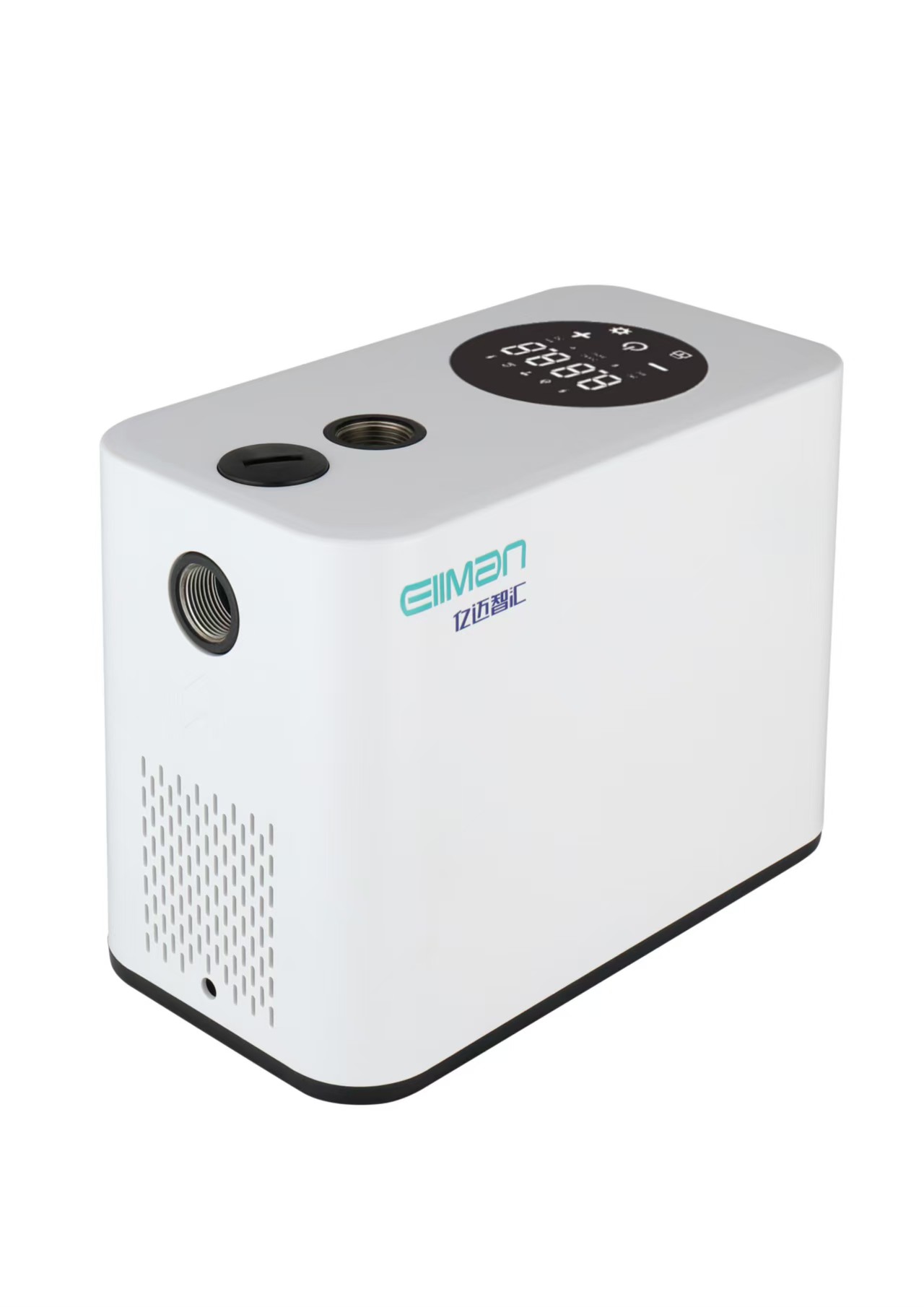

Permanent Magnet Variable Frequency Constant Pressure Pump (Self Suction Type) ZB5-45
Price range: $238.80 through $348.00
Usage Scenarios
Home water supply, buildings, commercial housing, well water extraction, suitable for applications requiring water suction and pressurization to match tap water pressure.
Product Attributes
- Liquid between +3°C~70°C.
The pH value of the medium is between 6.5 and 8.5.
The volume ratio of solid impurities in water shall not exceed 0.1%, and the particle size shall not exceed 0.2mm.
Usage Scenarios
Home water supply, buildings, commercial housing, well water extraction, suitable for applications requiring water suction and pressurization to match tap water pressure.
Product Attributes
- Liquid between +3°C~70°C.
- The pH value of the medium is between 6.5 and 8.5.
The volume ratio of solid impurities in water shall not exceed 0.1%, and the particle size shall not exceed 0.2mm.

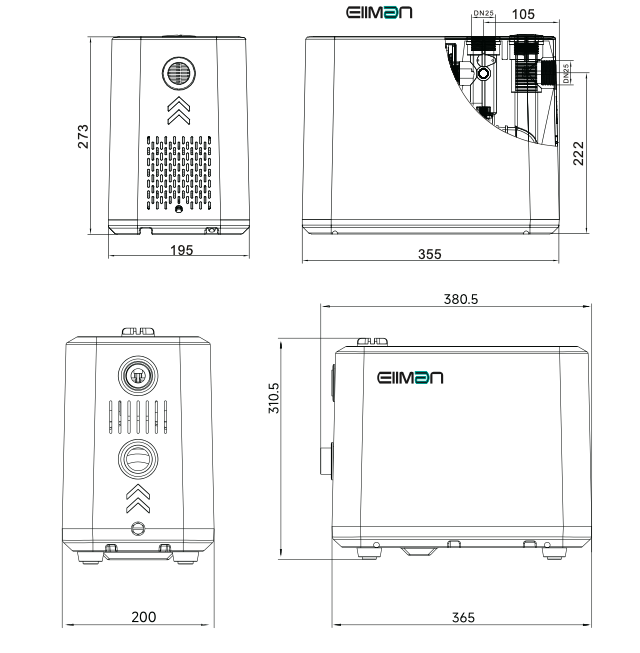

Dimensions

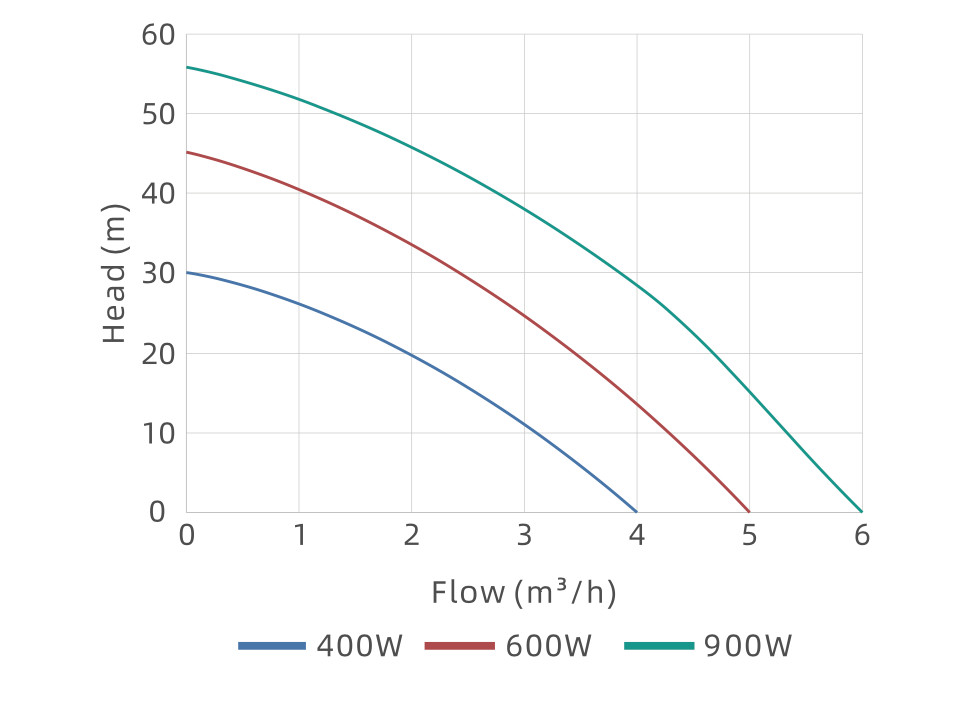

Performance Curve
TECHNICAL DATA
| Model | Power (w) | Rated Flow (m³/h) | Rated Head (m) | Max Flow (m³/h) | Max Head (m) | Max suction (m) | Max Speed (r/min) | Inlet/Outlet (mm) |
|---|---|---|---|---|---|---|---|---|
| ZB5-45 | 600 | 3 | 23 | 5 | 45 | 5 | 5600 | 25 |
| ZB6-55 | 900 | 4 | 30 | 6 | 55 | 5 | 4600 | 25 |
| Attributes | Value |
|---|---|
| Sub Model |
ZB5-45, ZB6-55 |
