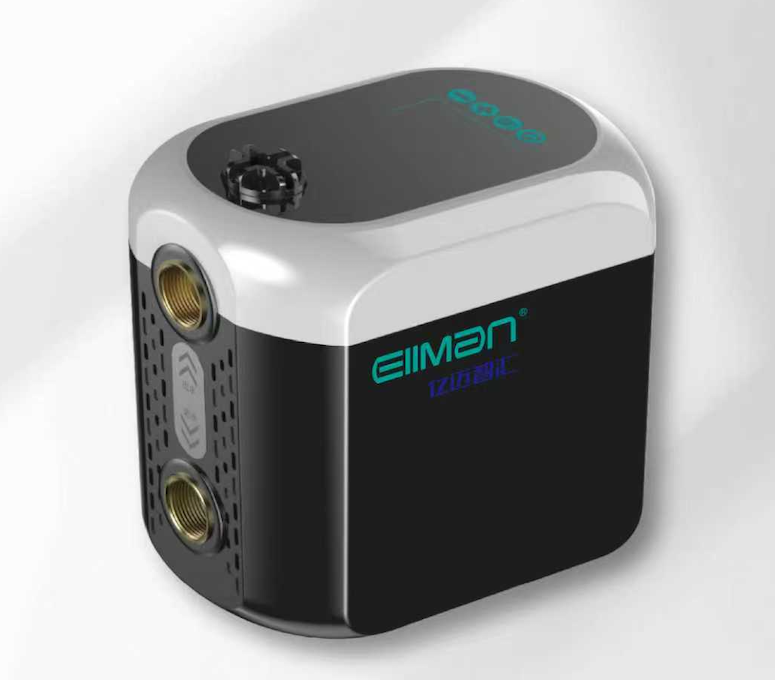

EIIMAN Permanent Magnet Variable Frequency Multistage Self-Priming Pump
Product Specifications
| Item | Specification |
|---|---|
| Rated Power | 650 W |
| Input Voltage | 180–260 V |
| Water Inlet/Outlet Diameter | DN25 |
| Rated Flow | 2.5 m³/h |
| Maximum Flow | 4.8 m³/h |
| Suction Height | ( / ) |
| Rated Head | 35 m |
| Maximum Head | 55 m |
| Applicable Water Temperature | ≤95 °C |
| Speed Range | 1000–5600 r/min |
| Product Weight | 6.2 kg |
| Package Dimensions | 360 × 220 × 305 mm |
Application Scenarios
For household pressurization:
Hot-water circulation / cold-water circulation / air-energy circulation / solar-energy circulation.
- 1–3 floor houses: can supply 5–6 water outlets simultaneously.
- 4–6 floor houses: can supply 4–5 water outlets simultaneously.
- 7–9 floor houses: can supply 3–4 water outlets simultaneously.
Features
Variable Frequency Energy Saving
Equipped with a 5600 r/min high-speed permanent-magnet motor that automatically adjusts power according to water usage — energy consumption is about half that of traditional booster pumps.
Constant Pressure & Low Noise
AI intelligent detection of pipeline pressure ensures constant pressure across different installation points; multi-layer noise-reduction structure keeps operation quieter.
Environmentally Friendly & Efficient
The water-contact components are made of 304 stainless steel, ensuring no rust and no pollution.
The four-wheel impeller design increases flow; rated flow is equivalent to that of a 700 W traditional pump, saving more energy.
Comprehensive Protection
- Dry-run protection: automatically restarts after water supply resumes.
- Overheat protection: prevents motor burnout.
- Anti-freeze protection: automatically activates when ambient temperature falls below 3 °C (monitors and restarts to prevent freezing).
Hot & Cold Water Compatible
304 stainless-steel flow structure supports both hot and cold circulation, with stable performance up to 95 °C.
Elegant Appearance
Compact, modern design that fits well with contemporary home aesthetics.
User-Friendly Maintenance
One-button factory reset; built-in timer displays clear usage duration on the terminal screen.
Cautions
- For water temperatures ≤ 95 °C only.
- Do not use for circulating acidic or alkaline liquids.
- During first use, fill the water completely before powering on.
